Process and denier Range: Parallel feeding up to 6 ply, intermingling and precision bi-conical package winding of PES/PA/PP multifilament yarn up to 3000 denier finish product.

Min./Max. No. Of positions: Min. 8 / Max. 44 positions

M/C Mechanical Speed: 1200 Meter/min. Take up speed

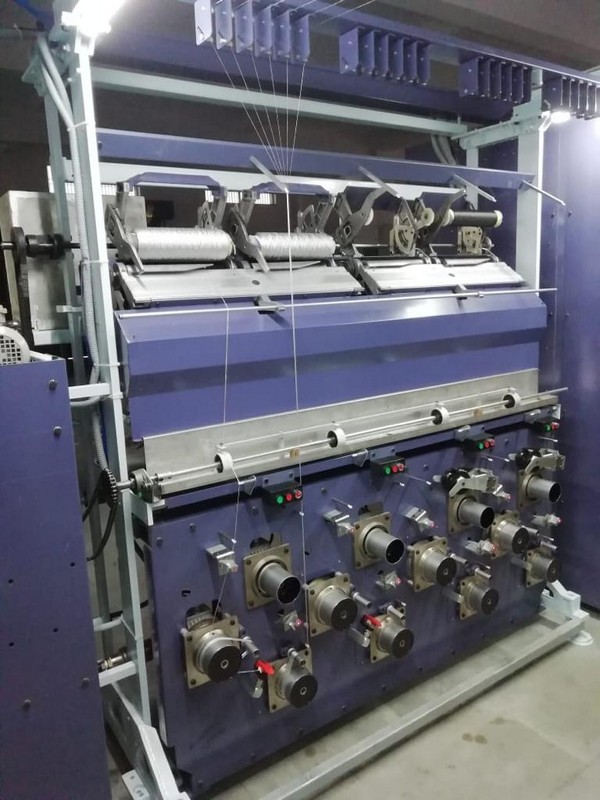

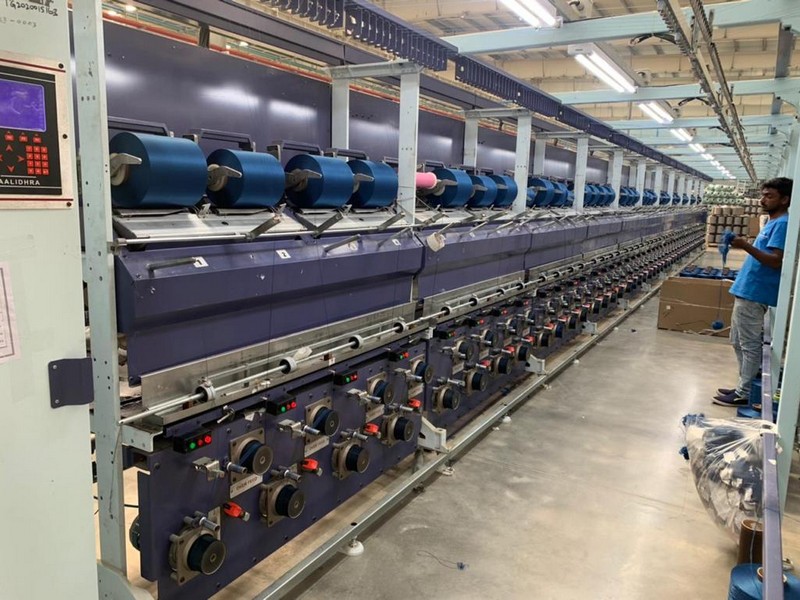

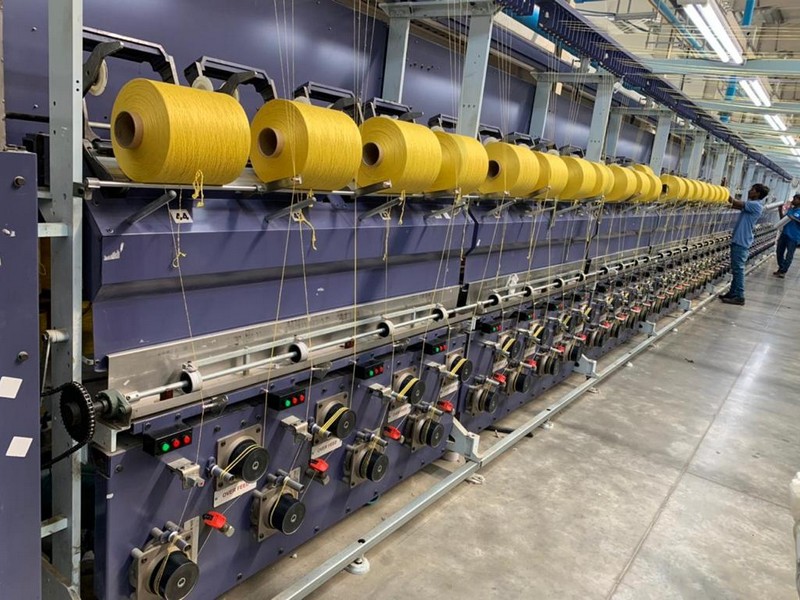

APAW-1500, the new AALIDHRA machine development, for assembling/intermingling of filament yarns to produce final denier up to 3000 plying maximum 6 multi filament yarns.
It also facilitates to produce stretchable yarn using Elastane yarn (Lycra) air covered by multi filament yarn with the help of Elastane feeding as an optional supply.

Specification :

1) Mechanical speed: – 1100 Mtr. / Min.
2) Machine control: – Individual position Controlled start and stop at defined
Interval / Package Wt. / Metered length.
3) Take up:
– Mechanical cam operated yarn traversing.
– Maximum 250 mm package diameter & 250 mm stroke length.
– Cylindrical package with settable tapper angle in steps.
– Up to 6.5 Kg. Final package Wt.

4) Intermingling Zone: – Controlled yarn tension over intermingling zone
Providing Godet overfeeding.
5) Required air pressure: -Up to 6 bars depends on jet type and process
Requirement.
6) Creel: – Up to 6 ply with stand by package Holder.
7) Intermingling Jet: – Optional as per final denier and product application.
8) Elastane feeder: – Optional with Single filament yarn feeding creel.

Machine Control: Individual position controlled Start and stops at pre-defined Interval/Package weight/Metered length

Close loop control: Encoder feed back close loop controlled all motor for better speed holding accuracy
Required Air Pressure: Min. 3 Bar / Max. 6 Bar depends on process parameter and finish product requirement.
Feed Creel: Box type, close yarn path with 6+6 stand by rotating package holder per position.

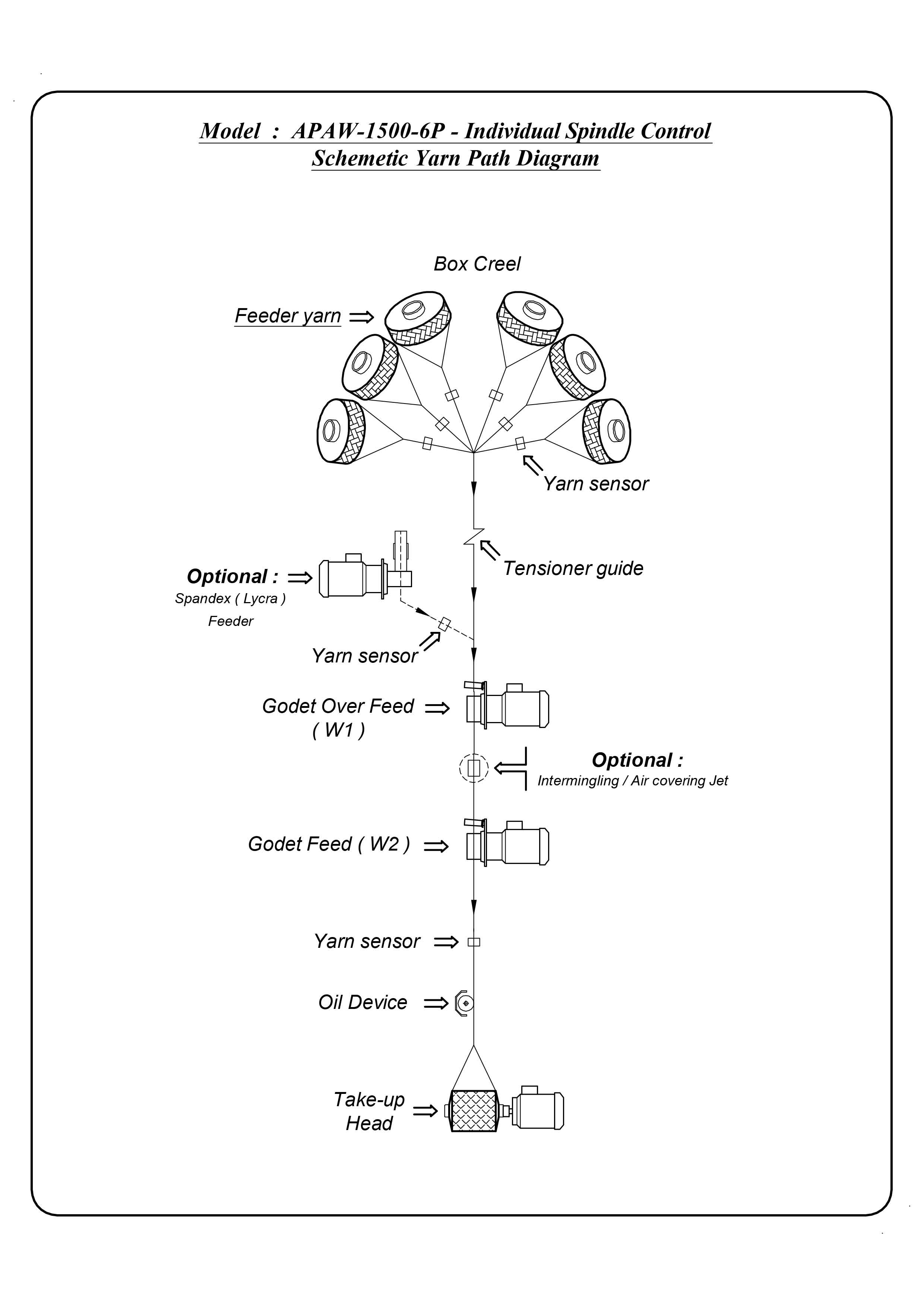

Yarn Feeding GODETS:
– Feeding Godets: One Godet before Intermingling jet box.
– Delivery Godets: One Godet after Intermingling Jet box
Intermingling Zone: Air Jet mounting holder with necessary air line and air flow valve within the machine

Tack – Up Head:
– Manual doffing
– 6/12/18 degree Bi-conical package build up
– 57 OR 69 mm Diameter, 280/290 mm paper tube length
– Max package Diameter: 240mm.
– Max Package Wt.: 6.5 Kg. @80~100 finish denier
– Traverse speed: Up to 600 CPM
– Multi stroke, Common axial winding program of the machine

Oiling Device: Common oiling device control of the machine with 64 mm. Diameter grooved oil Roller

Air, Water and Blower Header Lines: Compressed air line without pressure regulating/filter, water line, drainage line and fume blower line within the machine is Std. scope of supply.

Add on / alternate optional supply for enhancing specific ITY product quality and productivity.

Rotary Creel (R/C): Rotary creel facilitates loading the creel from either side of the creel

Intermingling Air Jets: Air Texturing Jet Core, housing and QRC according to denier range to be processed.
Spandex (Elastomer) Feeder: Spandex drafting/feeding with shortest possible and straight yarn path.

Hard/Soft Package Formation: Take Up Cradle with pressure adjustment through dead weight to produce regular and soft package yarn dying application

Machine Lay Out: Single deck Take Up, Single sided machine
Machine Length / Width / Height:
