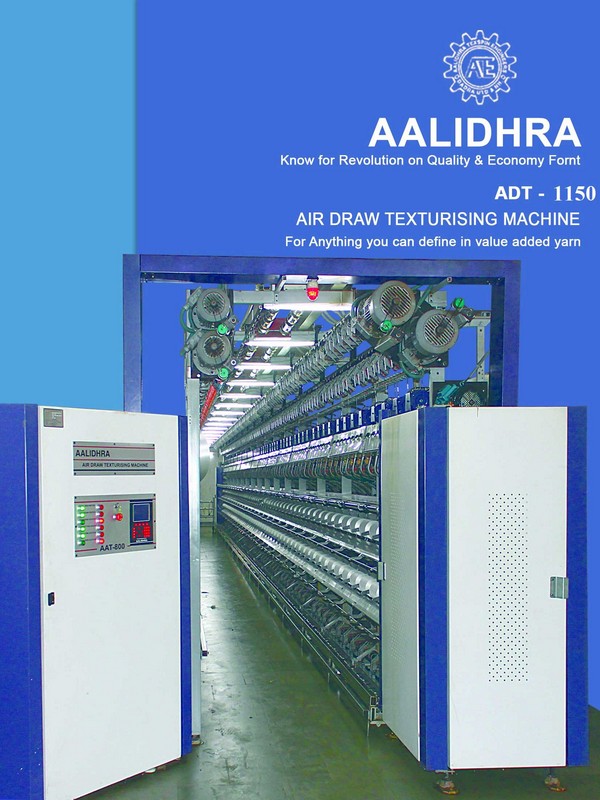

Why ADT 1150
Most space economical 3 deck take up machine
Single or Multiplied, Continues Filament ATY Yarn Processing Machine to Produce Specific Fancy ATY Yarn with the help of Add On Optional Devices
- Watch our video

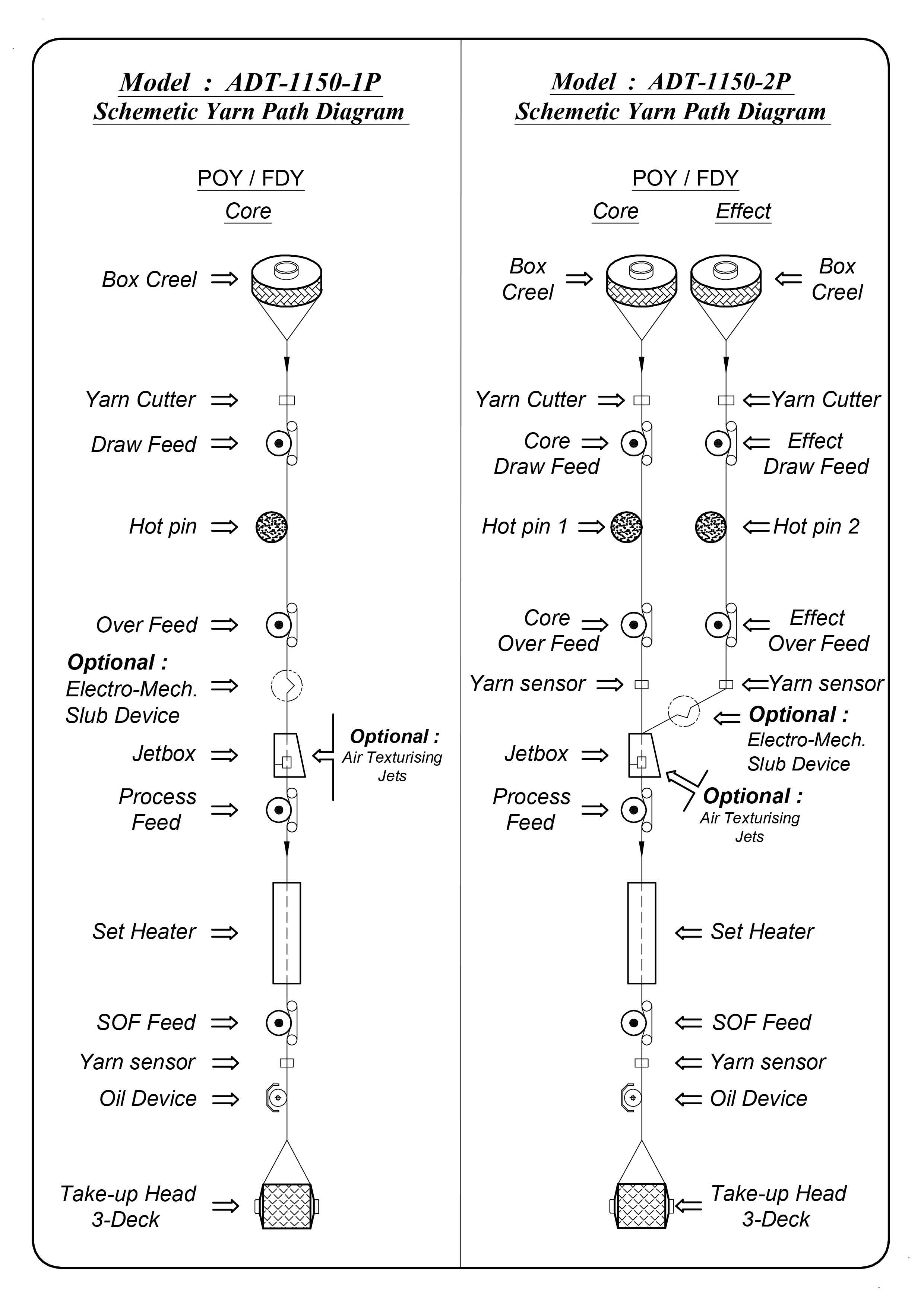

Process:
ADT 1150-1P: Drafting, heating and over feeding of Core yarn only, Air Texturing, heat stabilizing after air texturing and final winding of continuous filament polyester / poly amide Air Textured Yarn.
Required Air Pressure: Min. 8 Bar / Max. 12 Bar depends on process parameter and finish product requirement.
Process Denier Range:
Min./Max. No. Of positions: ADT 1150-1P & 2P: Min. 24 / Max. 180
M/C Mechanical Speed: 1200 Meter/min. Over feed speed, 1000 Meter/Min. Take up speed
Power Consumption: 0.30 Kwh per Position processing 150 Denier ATY @ 700 Meter/Min. Process speed, which depends on machine maintenance, end product quality requirement and ambient condition.
Feed Creel:
Box type, close yarn path, 2+2, rotating package holder per position and ADT 1150-1P with 1+1 package holder per position
Yarn Feed Shafts:
– Feed Shafts with Apron nipping: 4 Nos./position before texturing jet box and ADT-1150/1P with 2 Nos. feed shaft / position before texturing jet box.
– Delivery Shaft with apron Nipping: 2 Nos./position after texturing Jet box
Draw Heater:
– Vapour phase, 60 mm Diameter Sectional group Hot Pin for 8/12 position.
– Each Hot tube with Independent temperature set point for Core & Effect Yarn.
– Temperature Range: 100 C to 150 C.

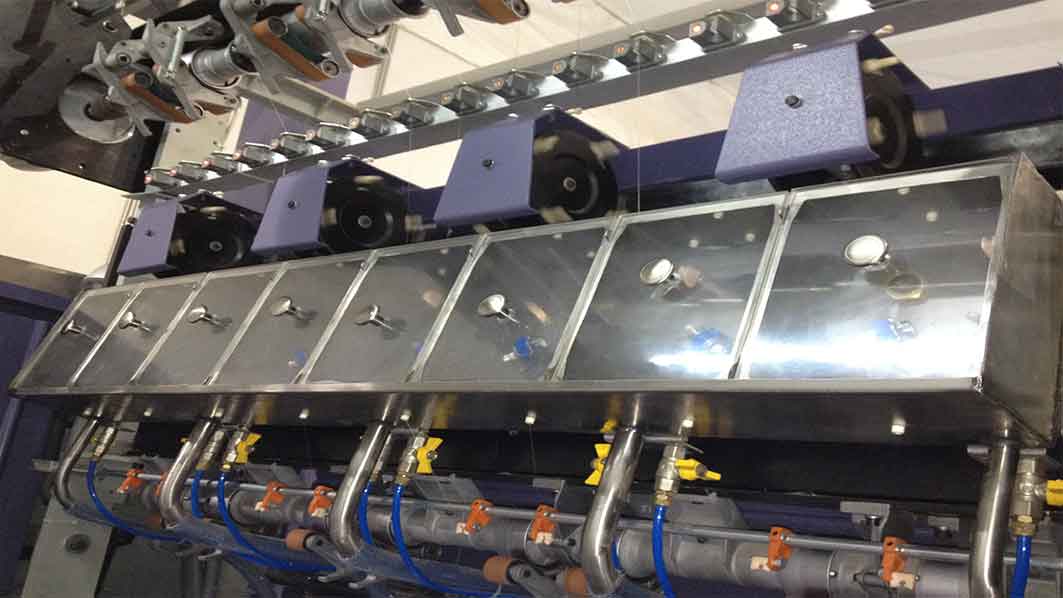

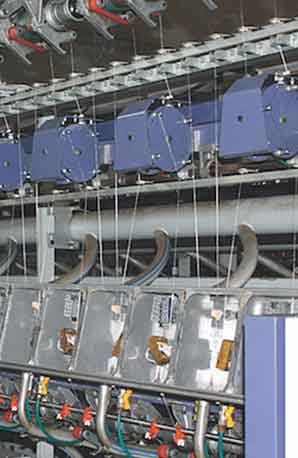

Texturing Jet Box: Enclosed Jet Box equipped with Wetting Device and connected to vapour exhaust blower (Texturing jet core and jet housing with QRC is an Optional upply)
Stabilizing Heater:
– Close-Contact type, Vapour Phase group heater of 1.25 meter long.
– Temperature Range: 150 C to 240 C.

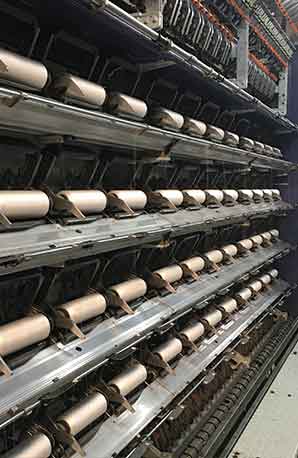

Tack – Up Head:
– Manual doffing
– 6/12/18 degree Bi-conical package build up
– 57 OR 69 mm Diameter, 280/290 mm paper tube length
– Max package Diameter: 240mm.
– Max Package Wt.: 6.5 Kg. @80~100 finish denier
– Traverse speed: Up to 600 CPM
– Multi stroke, axial winding program
Oiling Device: 64 mm. Diameter grooved oil Roller
Air, Water and Blower Header Lines: Compressed air line without pressure regulating/filter, water line, drainage line and fume blower line within the machine is Std.scope of supply.
Add on / alternate optional supply for enhancing specific ATY product quality and productivity.
Rotary Creel (R/C): Rotary creel, 2+2, rotating package holder per position facilitates loading of creel from either side of the creel
Fancy Yarn Devices:
Texturing Jet: Air Texturing Jet Core, housing and QRC according to denier range to be processed.
Hard/Soft Package Formation: Take Up Cradle with pressure adjustment through dead weight to produce regular and soft package for textured yarn dying application
Doff Timer: Doff timer for random, sectional or side/machine wise equal length doffing indications and production efficiency monitoring system

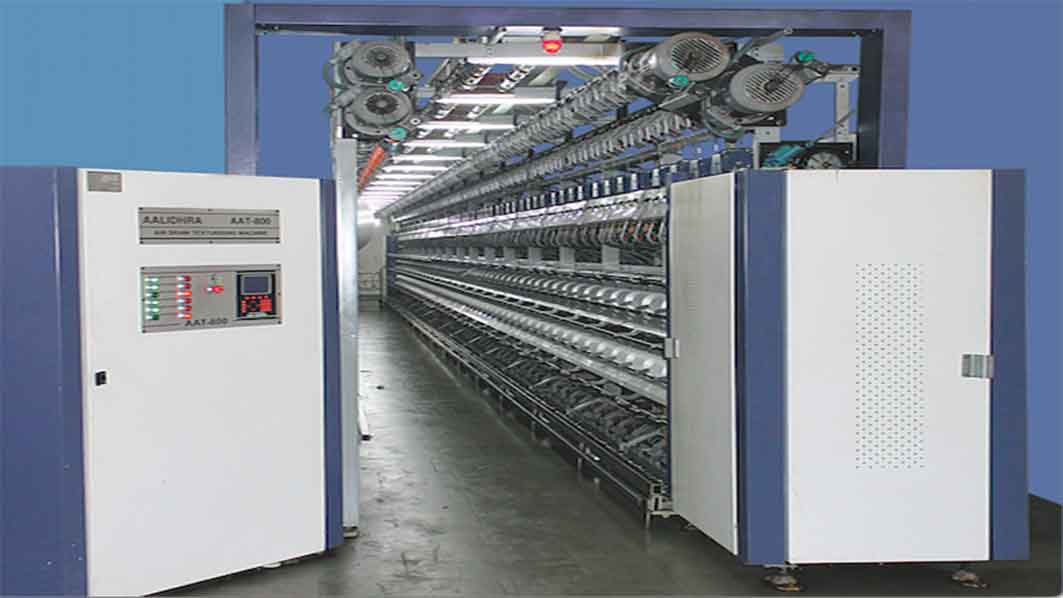

Machine Lay Out: 3 Deck Take Up, Single sided machine
Machine Length / Width / Height:
No. Of Position | 96 | 108 | 120 | 132 | 144 | 156 | 168 | 180 | |
Machine Length with | 13.7 | 15.2 | 16.7 | 18.2 | 19.8 | 21.3 | 23 | 24 | |
Closed Door (meter) | |||||||||
Machine Width: | |||||||||
ADT 1150-1P | ——————– 3.05 Meter / 10’ Feet ——————– | ||||||||
ADT 1150-2P | —————- 4.70 Meter/ 15’- 6” ——————- | ||||||||
Machine Height: ADT 1150-1P | ——–W/O Slub Device: 3.0 Meter / 9’-10” Feet ———————— With Slub Device: 3.22 Meter / 10’-7” Feet ——— | ||||||||
3.75 meter / 12’- 4” feet at blower outlet | |||||||||
Machine Height: ADT 1150-2P | ——————– 3.38 Meter / 11’-1” Feet ——————– | ||||||||
3.75 meter / 12’- 4” feet at blower outlet |
No. Of Positions: | 60 | 72 | 84 | 96 | 108 | 120 | 132 | 144 | 156 | 168 | 180 | ||
Drive Motor (KW): | |||||||||||||
-ADT 1150-1P: | 20.6 | 23.6 | 25.5 | 31.9 | 31.9 | 35 | 36.8 | 40.5 | 48 | 49.5 | 49.5 | ||
-ADT 1150-2P: | 25.9 | 29.6 | 31.5 | 41.3 | 41.3 | 44.3 | 46.2 | 51.8 | 61.2 | 62.7 | 62.7 | ||
All Heaters (KW): | |||||||||||||
-ADT 1150-1P: | 11.5 | 13.8 | 16.1 | 18.4 | 20.7 | 23 | 25.3 | 27.6 | 29.9 | 32.2 | 34.5 | ||
-ADT 1150-2P: | 15.5 | 18.6 | 21.7 | 24.8 | 27.9 | 31 | 34.1 | 37.2 | 40.3 | 43.4 | 46.5 | ||
Total Power (KW): | |||||||||||||
-ADT 1150-1P: | 32.1 | 37.4 | 41.6 | 50.3 | 52.6 | 58 | 62.1 | 68.1 | 77.9 | 81.7 | 84 | ||
-ADT 1150-2P: | 41.4 | 48.2 | 53.2 | 66.1 | 69.2 | 75.3 | 80.3 | 89 | 101.5 | 106.1 | 109.2 |
