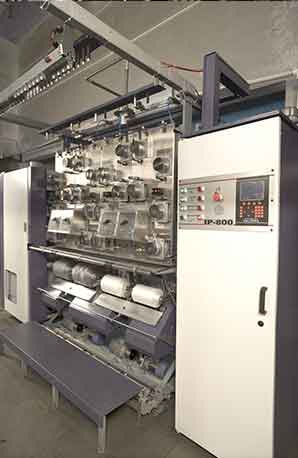

Why ADT 1500
Individual spindle driven/controlled (ON/OFF), GODET feeding Air texturing machine to process 60 – 3000 denier multifilament fancy ATY yarn.
- Watch our video
Process:
Process Denier Range:
Min./Max. No. Of positions: Min. 8 / Max. 44 positions
M/C Mechanical Speed: 1200 Meter/min. Take up speed
Machine Control: Individual position controlled Start and stops at pre-defined Interval/Package weight/Metered length
Close loop control: Encoder feed back close loop controlled all motor for better speed holding accuracy
Required Air Pressure: Min. 8 Bar / Max. 12 Bar depends on process parameter and finish product requirement.

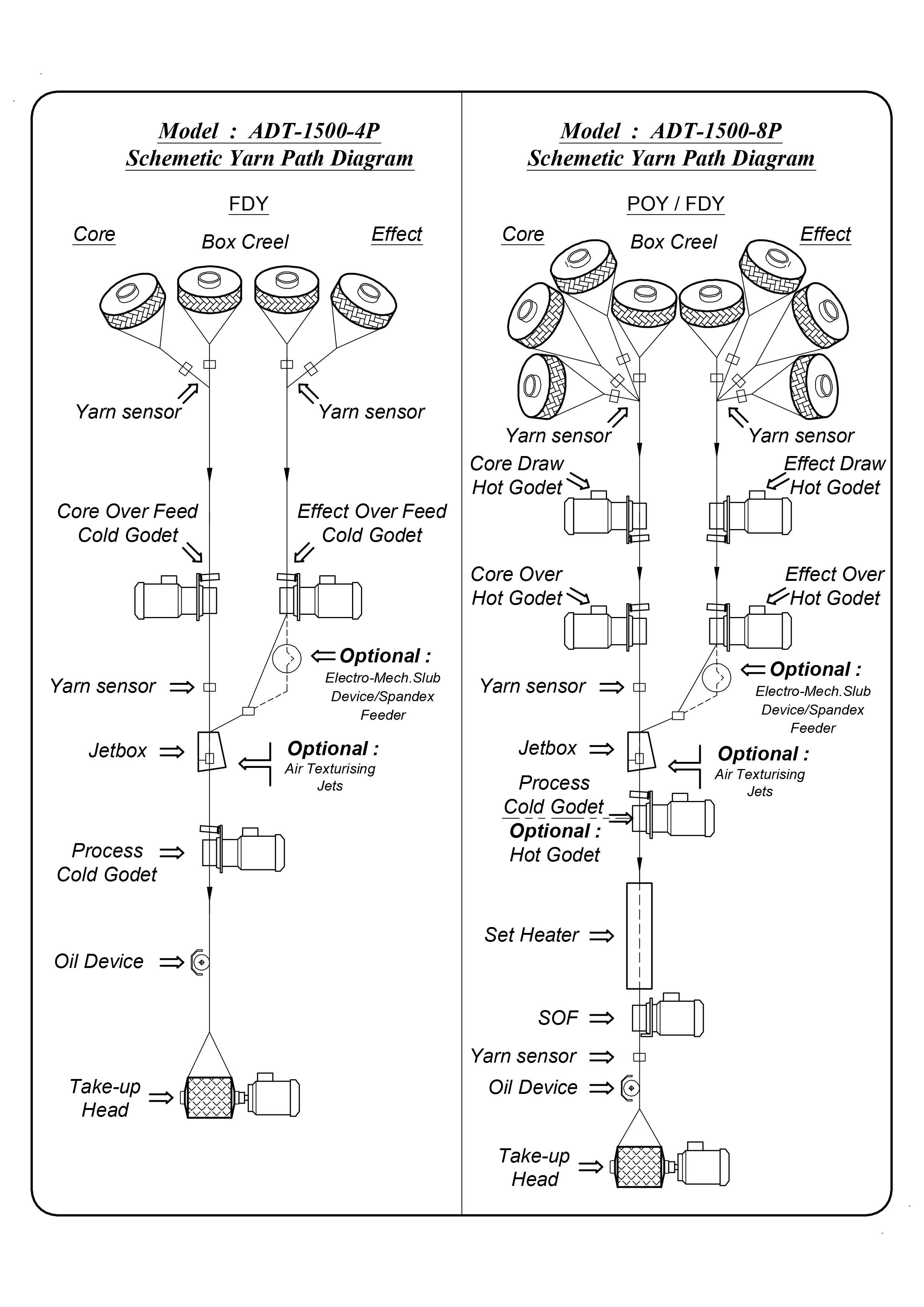

Feed Creel: Box type, close yarn path, ADT 1500 – 4P with 4+4, rotating package holder per position and ADT 1500 – 8P with 8+8 package holder per position

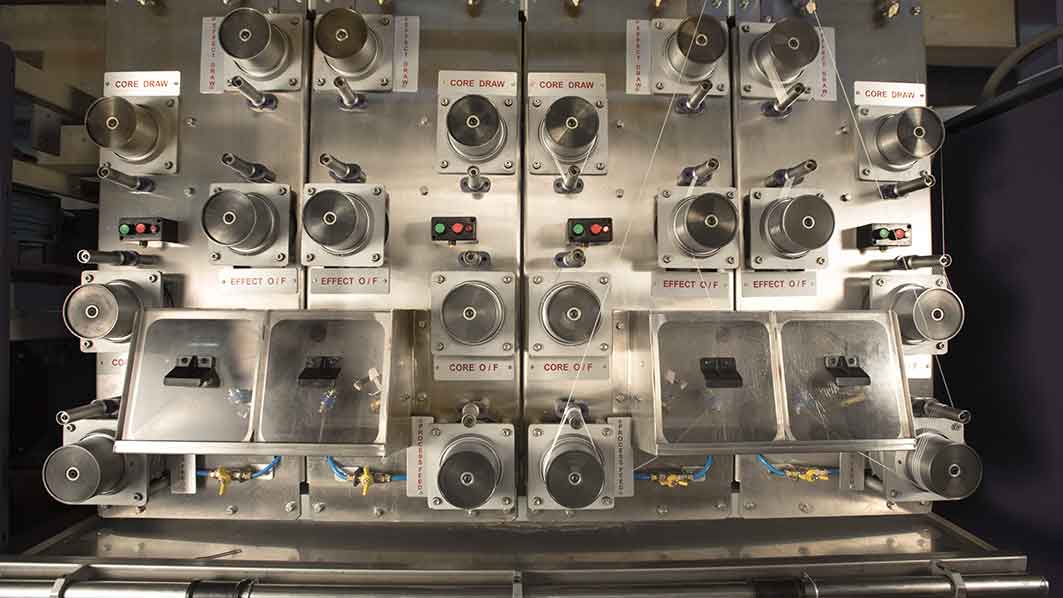

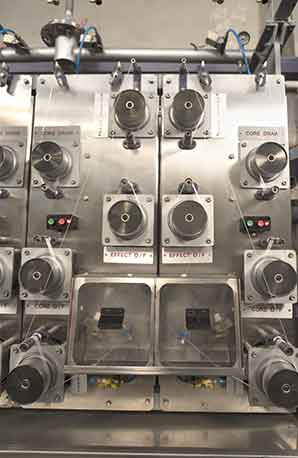

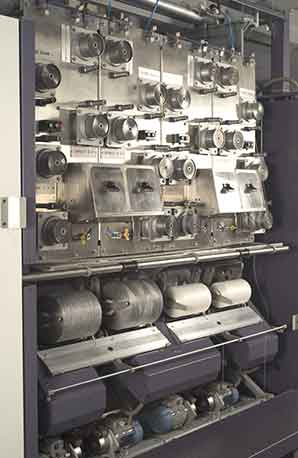

Yarn Feeding GODETS:
– Feeding Godets: ADT-1500 / 8P with 4 Nos./position Heated Godets, two each for core and effect yarn and ADT- 1500 / 4P with 2 Nos. Cold Godets, one each for core and effect yarn per position before texturing jet box.
– Delivery Godets: 2 Nos./position after texturing Jet box
Draw Heater:
– 100 mm Diameter Cold and Heated Godets for Core and Effect yarn for ADT 1500 4P and 8P respectively
– Temperature Range: Up to 150 C.
Texturing Jet Box: Enclosed Jet Box equipped with Wetting Device and connected to vapour exhaust blower (Texturing jet core and jet housing with QRC is an Optional supply)
Stabilizing Heater:
– Close Contact type twin position, Vapour Phase group heater of 1.75 meter long.
– Temperature Range: 150 C to 240 C, Applicable to ADT 1500 – 8P only.
Tack – Up Head:
– Manual doffing
– 6/12/18 degree Bi-conical package build up
– 57 OR 69 mm Diameter, 280/290 mm paper tube length
– Max package Diameter: 240mm.
– Max Package Wt.: 6.5 Kg. @80~100 finish denier
– Traverse speed: Up to 600 CPM
– Multi stroke, Common axial winding program of the machine
Oiling Device: Common oiling device control of the machine with 64 mm. Diameter grooved oil Roller
Air, Water and Blower Header Lines: Compressed air line without pressure regulating/filter, water line, drainage line and fume blower line within the machine is Std. scope of supply.
Add on / alternate optional supply for enhancing specific ATY product quality and productivity.
Rotary Creel (R/C): Rotary creel facilitates loading the creel from either side of the creel
Fancy Yarn Devices:
Machine Lay Out: Single deck Take Up, Single sided machine
Machine Length / Width / Height:
No. Of Position | 8 | 20 | 24 | 28 | 32 | 36 | 40 | 44 | |
Machine Length with | 4.9 | 10.1 | 11.8 | 13.5 | 15.3 | 17 | 19 | 20.4 | |
Door closed (Meter) | |||||||||
Machine Width: | |||||||||
ADT 1500 – 4P | ——————– 4.10 Meter / 13’ 6” Feet ——————– | ||||||||
ADT 1500 – 8P | —————- 5.50 Meter/ 18’ Feet ——————- | ||||||||
————- 2.55 Meter / 8’ 5” Feet —————- | |||||||||
Machine Height: ADT 1500 – 4P | ——————– 3.05 Meter / 10’ Feet ————— | ||||||||
Machine Height: ADT 1500 – 8P | |||||||||
ADT 1500 – 4P (Std. Machine) :
No. Of Position: | 8 | 12 | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 44 |
Total Power (KW): | 14 | 20 | 26 | 32 | 38 | 44 | 50 | 56 | 62 | 68 |
ADT 1500 – 8P (Std. Machine)
No. Of Positions: | 8 | 12 | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 44 |
Total Power (KW): | 40 | 56 | 72 | 88 | 104 | 120 | 136 | 152 | 168 | 184 |
Individual spindle driven/controlled (ON/OFF), GODET feeding Air texturing machine to process 60 – 3000 denier multifilament fancy ATY yarn.
